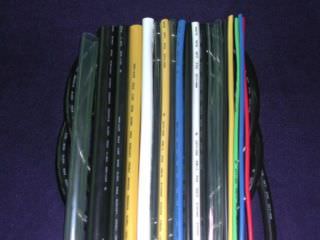

PVC high voltage insulation tubing, It's uniform thickness and high voltage insulation effect is good, Products without pinhole phenomenon, Coupled with low price, Easy to use, Therefore, Can be widely used in various types of electrical products insulation protection.
This product is suitable for insulation and protection of general motors、transformers、 freezing air conditioners、capacitors and cords.
Color
The standard color is Black and Clear. (But Red、Yellow、Blue … Are available by special order. )
Type
Two types are classified according to the degrees of insulation withstand voltage.
CFT-300 : For use 300V voltage circuits.
CFT-600 : For use 600V voltage circuits.
Length
Total length 1000mm ±20mm. ( Continuous length may be negotiated )
Property Requirements
|
Grade |
Work temperature |
Physical properties |
Resistivity at 20℃ (Ω·m) |
Dielectric strength (Volts/min) |
Flammability |
Thickness (mm) |
|
|
Tensile strength (Kg/cm) |
Elongation at break ( % ) |
||||||
CFT-300 |
-20℃ to 105℃ |
200 |
180 |
5.0 |
2500 |
Self-extinguish |
Less than 0.55 |
|
CFT-600 |
Less than 0.70 |
||||||
Measurement Standards
|
AWG |
Packing |
Min. Thickness |
AWG |
Packing |
Min. Thickness |
||
|
600 V |
300 V |
600 V |
300 V |
||||
|
20 |
1000 FT |
0.45 mm |
0.35 mm |
7 |
1000 FT |
0.60 mm |
0.45 mm |
|
19 |
6 |
||||||
|
18 |
0.60 mm |
5 |
|||||
|
17 |
4 |
||||||
|
16 |
3 |
500 FT |
|||||
|
15 |
2 |
||||||
|
14 |
1 |
||||||
|
13 |
0 |
||||||
|
12 |
5/16 |
------- |
|||||
|
11 |
3/8 |
||||||
|
10 |
7/16 |
||||||
|
9 |
0.45 mm |
1/2 |
|||||
|
8 |
5/8 |
0.70 mm |
|||||
